Glacier Stone Heat Transfer
|
Dark stones on glacier surface

Applying Planck's Theory to Glaciers

Dark Stones, Melting Ice

How dark rocks on glacier surfaces absorb solar radiation, heat up according to Planck's blackbody law, and accelerate ice melting through heat conduction.

01 — The Physics of Stones on Ice

From solar absorption to ice melt — a complete energy balance

When dark stones lie on a glacier surface, they absorb far more solar radiation than the surrounding ice or snow. A dark basalt rock absorbs over 90% of incoming sunlight, while clean snow reflects up to 90%. This enormous difference in albedo — the fraction of light reflected — means that stones act as tiny heat engines on the glacier surface.

Once heated by the sun, the stone must shed that energy. It does so in three ways: it radiates infrared heat upward (described by the Stefan-Boltzmann law, the integral of Planck's blackbody function), it loses heat to the surrounding air through convection, and — crucially — it conducts heat downward into the ice it sits on. This last pathway is what melts the glacier.

The stone reaches an equilibrium temperature where energy absorbed equals energy lost. At this temperature, the fraction of energy flowing into the ice determines the melt rate. The calculator below lets you explore how stone size, rock type, solar intensity, and wind conditions affect this energy partition and the resulting ice melt.

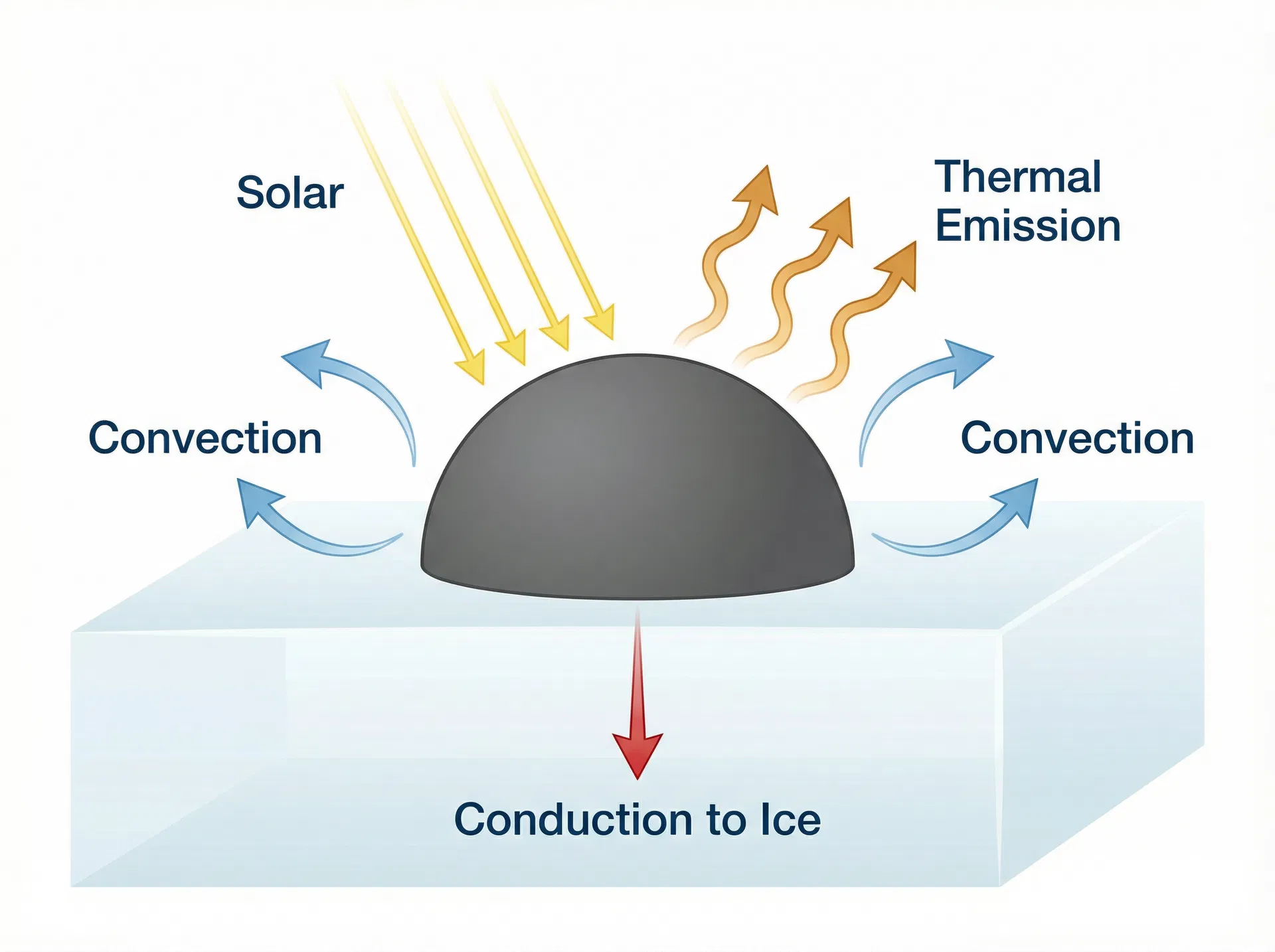

Energy balance diagram

Energy balance of a dark stone on glacier ice: solar radiation is absorbed, then partitioned into thermal emission (Planck/Stefan-Boltzmann), convective loss, and heat conduction to ice.

The Key Equations

Solar energy absorbed:

Qsolar = (1 − α) · S · Aproj

Thermal radiation emitted (Stefan-Boltzmann):

Qrad = ε · σ · T4 · Atop

Heat conduction to ice:

Qice = k · Acontact · (Tstone − Tice) / d

Ice melt rate:

ṁ = Qice / Lf

02 — Interactive Calculator

Adjust the parameters to see how each factor affects stone temperature and ice melt rate

Rock Type

Stone Properties

Stone Diameter30 cm
5100

Environment

Solar Irradiance850 W/m²
2001100
Air Temperature8 °C
-1025
Wind Speed2 m/s
015

Scale Up to Glacier

Stone Density50 per 100 m²
1200
Glacier Area1 km²
0.120
18.9°C
Stone Temperature
55.3 W
Solar Absorbed
18.59 W
Heat to Ice
200.4 g/h
Melt Rate

Energy Partition

Thermal Radiation (upward)22.64 W (41.0%)
Convective Loss (air)14.05 W (25.4%)
Heat Conduction (to ice)18.59 W (33.6%)
Total Solar Absorbed55.28 W

Stone Thermal Emission Spectrum

Planck curve showing the infrared radiation emitted by the heated stone — peak emission falls in the atmospheric absorption bands.

Ice Melt Impact

1.60
kg ice melted / stone / day
8.0
tonnes / day (all stones)
962
tonnes / summer season

Assuming 8 hours of sunshine per day, 120-day summer season

The Planck Connection

The heated stone emits thermal radiation according to Planck's blackbody law. At typical stone temperatures (30–60°C), the peak emission wavelength falls around 8–10 μm — right in the heart of the atmospheric infrared window and the CO₂ absorption band at 15 μm. This means some of the stone's thermal radiation is absorbed by greenhouse gases rather than escaping to space, creating a local positive feedback loop.

This calculator uses a simplified steady-state energy balance model. Real glacier conditions involve additional factors including debris thickness effects, sub-surface heat diffusion, meltwater refreezing, diurnal temperature cycles, and cloud cover variations. The model provides order-of-magnitude estimates to illustrate the underlying physics.
